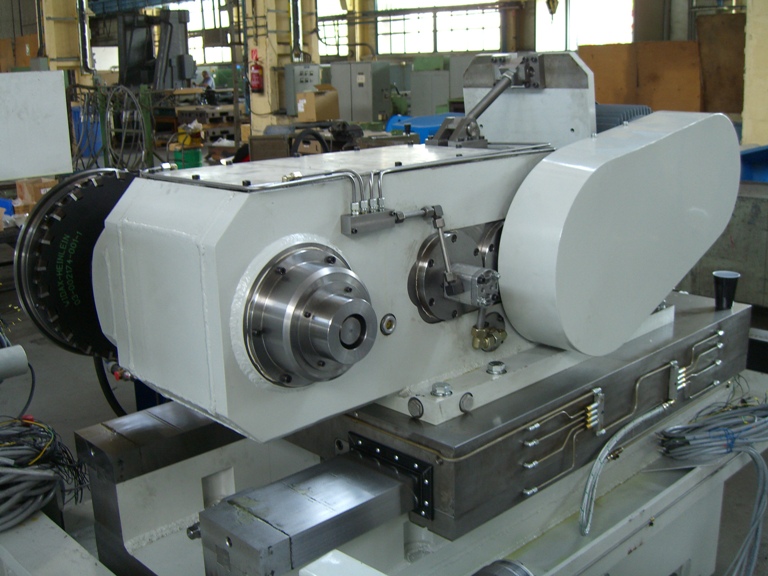

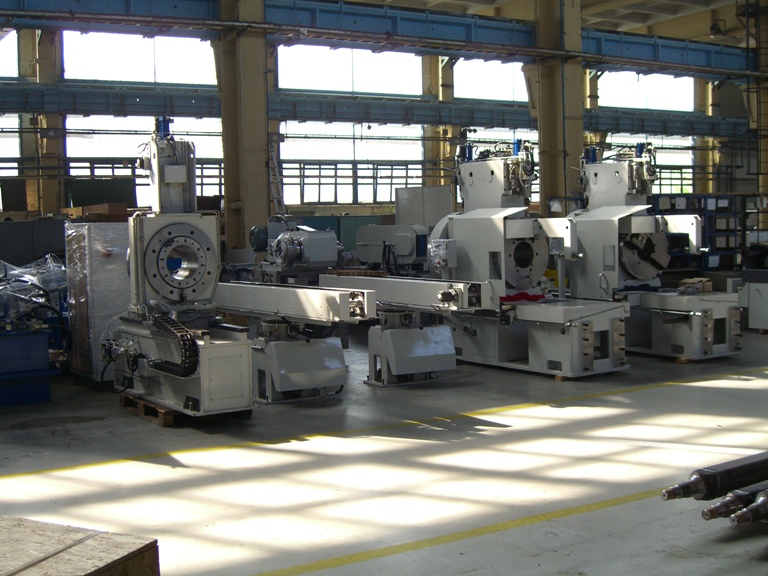

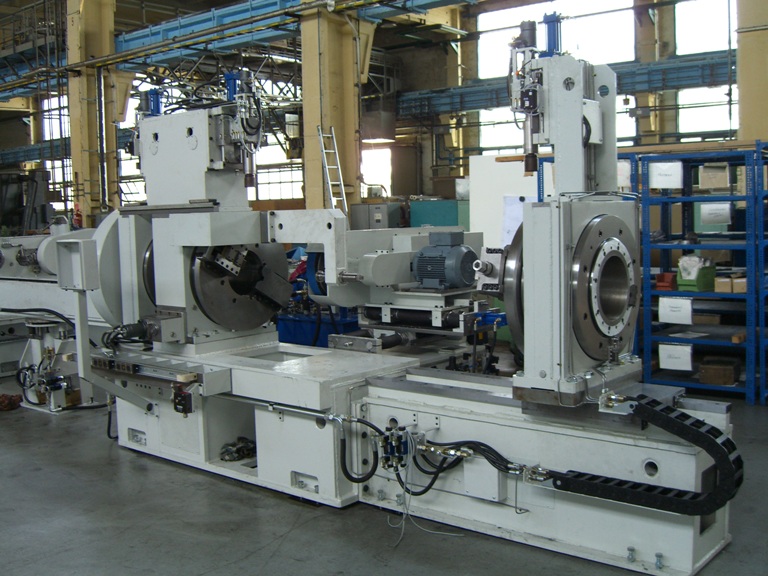

Function of single-prupose machine

Removal of the red-hot welded seam from a ring-shaped workpiece (rolled butt welding)



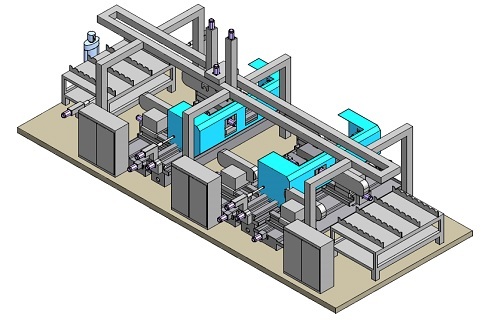

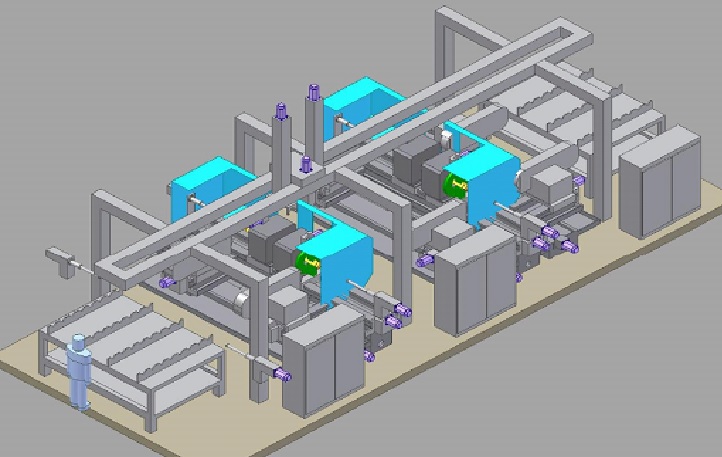

Labour process

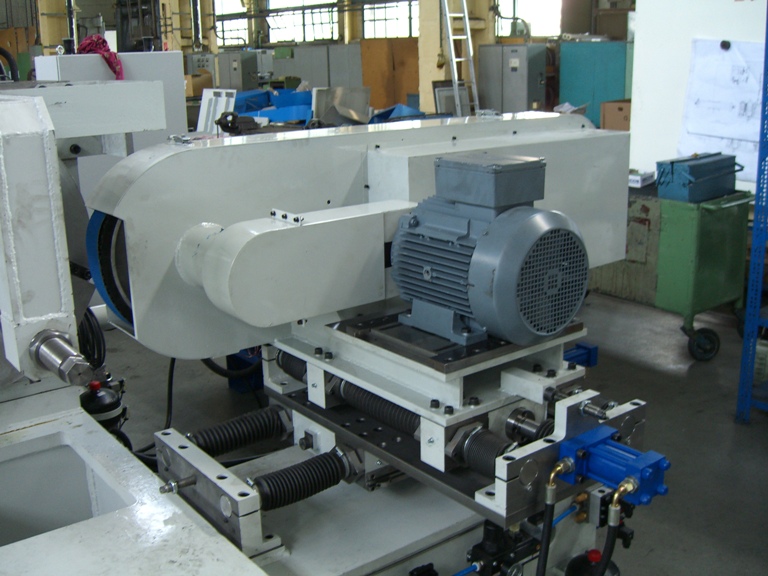

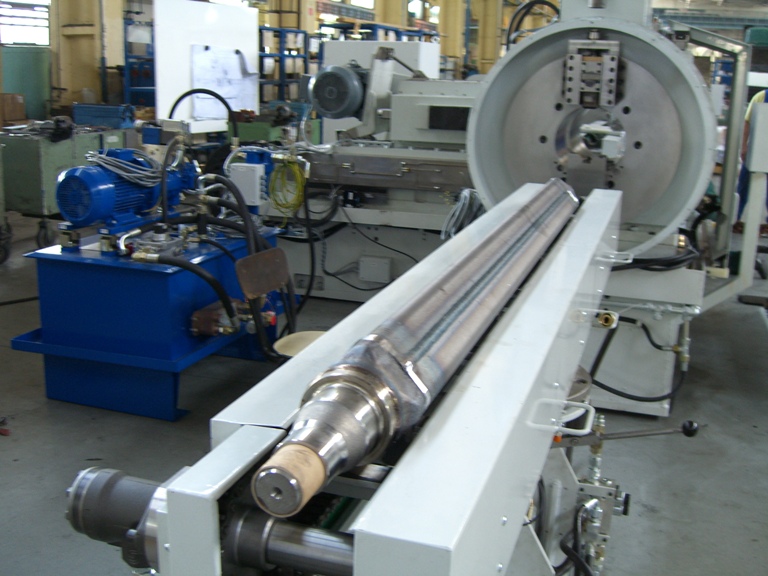

The workpiece is transferred by a roller track to a speciel hydraulic vice. The two hydraulically rotated body late removes the welded seam in one step. The finished ring is rotated to a vertical position by a tilting table to ease its removal.

The semi-automatic machine has a PLC control and double-handedly operated.









---

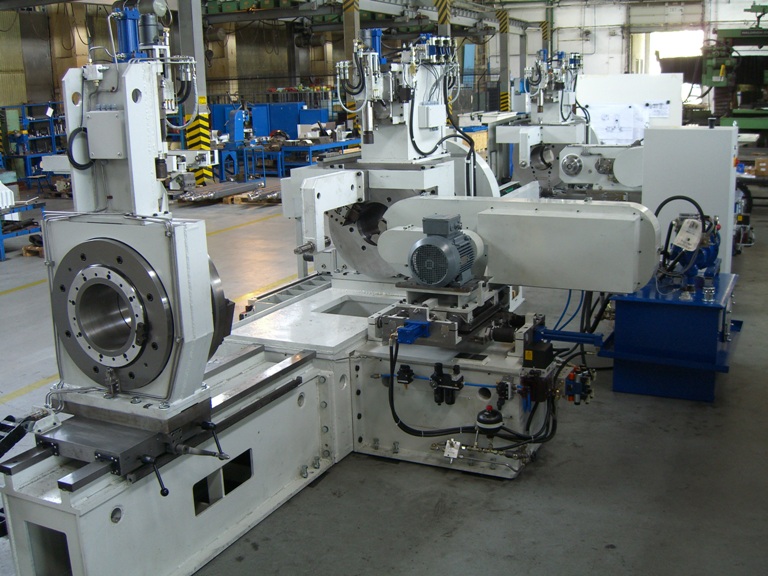

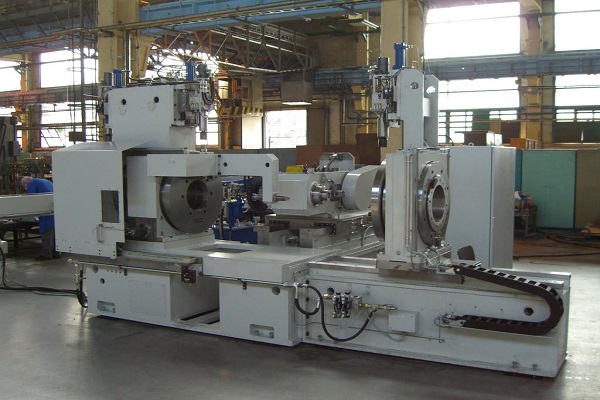

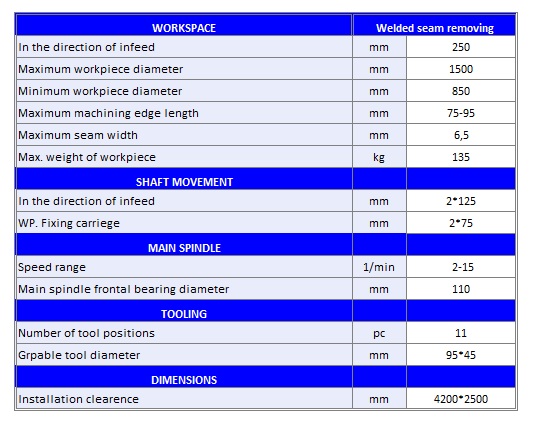

Base modell

• machine base designed from a welded frame,
• further main parts designed from welded frames,
• automatic transfer system with wear- and heat-resistant rollers,
• closed enclosure with air extraction to lessen environmental load,
• closed electric cabinet with heat-exchanger,
• mobile control panel with PC control,
• hydraulic power unit with main engine and hydraulic valves,
• chip removal unit,
• design in conform with CE and UN regulations,
• BOSCH REXROTH hydraulic components and control unit,
• 380V, 50Hz, 3 phase operating network,
