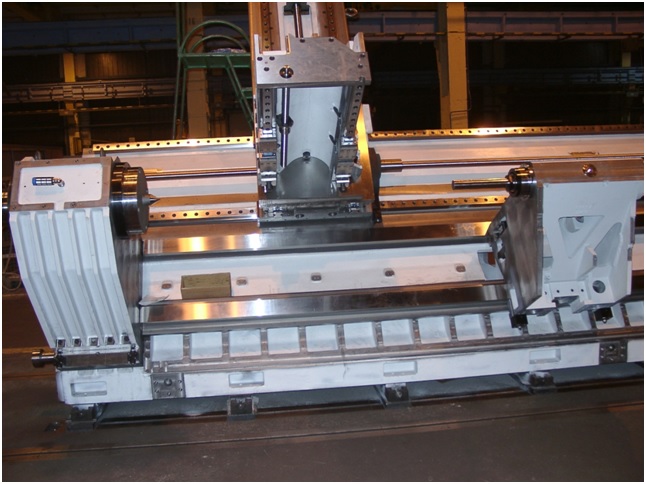

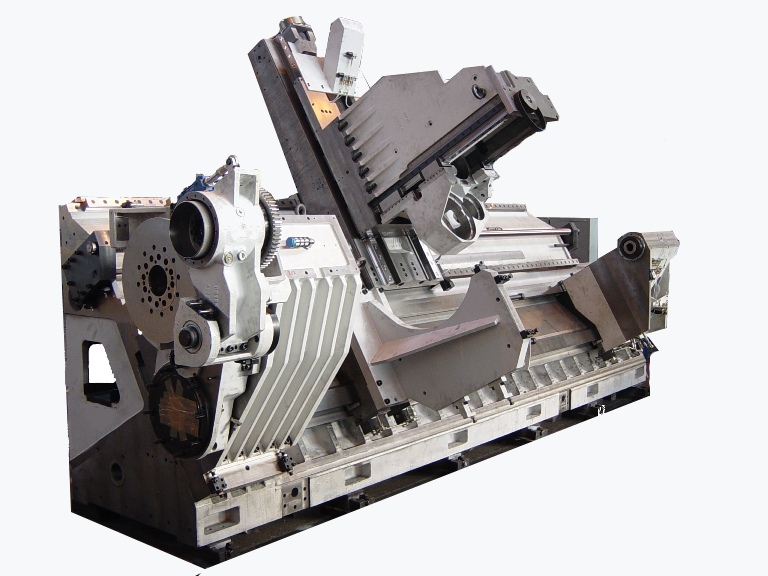

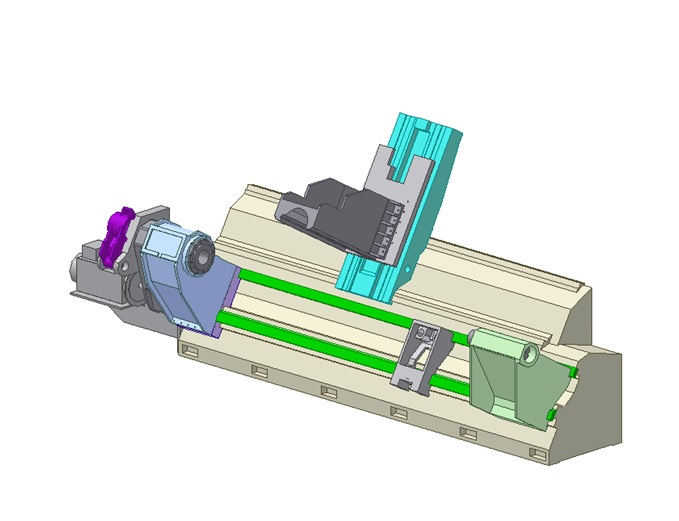

- Standard machine
- main drive: 60 KW (90 KW)
- speed: 1600 rpm
- torque: 4470 Nm (10248 Nm)
- spindle bore diameter. 165 mm
- peak distance: 3000 mm
- machined diameter: 1150 mm
- machining length: 2150 mm
- stroke lengths: X = 920 mm
- Y = 500 mm
- Z = 2300 mm
- rapid traverse movements: 15 m / min
- C axis speed: 20 rpm
- C axis torque: 3000 Nm
- Turning milling head output: 25 kw (50 kw)
- Maximum revs: 4000 rpm
- Tool Holding System: HSK-100
- B axis range: (+90) - (-110) degrees
- B axis rotation speed: 90 degrees / sec
- B axle torque: 1200 Nm
- B axle torque is positioned: 3000 Nm
- Indexing around axis B with angular distribution: 2.5 degrees
- Y axis fast speed: 12.5 m / min
- Y axis feed force: 20000N
- Stem of the winding sleeve: 200 mm
- Tool magazine capacity: 72 pcs
- max. tool diameter: 160 mm
- max. tool weight: 25 kg
- tool change time: 20 sec.
- Drive / control: SIEMENS 840D or FANUC 31I
