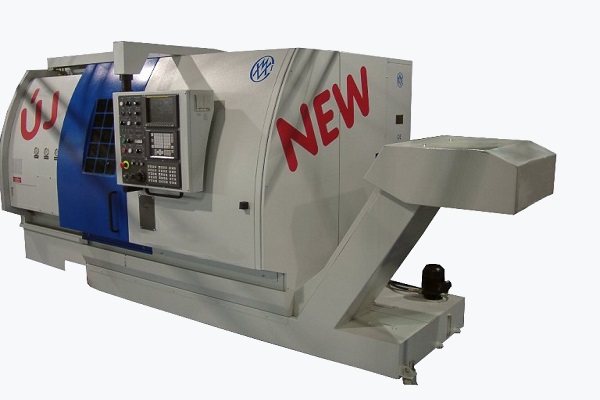

Standard machine

• 60°-inclined, cast mechanize bed,
• hardened, ground, assembled guide ways,
• cast-iron headstock, reinforced main spindle with 72 mm through-hole,
• precision main spindle bearing,
• guide ways with plastic coating,
• backlash-free ballscrew-ballnut actuation
• slideway, ballscrew guard with sliding cover
• 12 position VDI turret, type BARUFFALDI TB- or TBMR- 160, bidirectional positioning
• thread cutting rotary encoder,
• hydraulic unit for chuck and tailstock actuation,
• hydraulic tailstock sleeve actuation,
• foot switch for chuck and tailstock actuation,
• chip conveyor with coolant pump,
• closed housing,
• work light,
• electrical cabinet integrated in the cover
• FANUC 18i TB CNC control,
• FANUC  15/17,5 kw (100%) AC main drive and main motor
• FANUC electronic hand wheel (MPG)
• FANUC AC second drive and motor
• 380V, 50Hz, 3f. electric connection,
