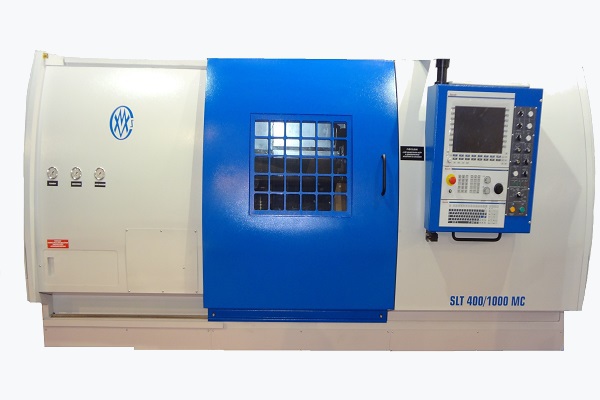

SLT-400/1000 lathe
Standard machine
- 60° cast-iron slant-bed,
- hardened, ground, assembled slide-ways,
- cast-iron headstock, main spindle bore d=82 mm
- slide guidance with plastic coating,
- backlash-eliminated balscrew-ballnut movement,
- slide-way, ballscrew protection with sliding cover,
- 12-position VDI turret, bidirectional positioning,
- rotary encoder for thread-cutting,
- measuring system with rotary encoder for both axes,
- hydraulic unit for chuck and tailstock,
- hydraulic tailstock-quill movement,
- mechanical tailstock dragging and fixing,
- foot switch for chuck operation,
- two-stage back gear,
- chip-conveyor, compl.,
- working area cover, compl.,
- machine lamp,
- coolant supply equipment, compl.,
- electric box built in a casing,
- FANUC 0i TB CNCunit
- FANUC 22/26 kW AC main dive and main motor
- FANUC electronic handwheel
- FANUC AC drives and motor 20m/min
