The Easy Grinding Machine family is a great value for money. It is characterized by easy handling and excellent design. The Easy range of machine tables are  from 300x600mm to 810x3150mm.









---

STRUCTURAL CONSTRUCTION OF THE MACHINE

The machine bed is a specially ribbed unit. The piping system runs through the length of the machine bed entirely. The sliding surfaces are hand-milled to ensure high precision and perfect fit on the joining surfaces. Structural design guarantees rigidity and high load capacity. Screwing deformation has been minimized, ensuring maximum productivity and maximum geometric precision. The slide ways have a W profile. High running accuracy and rigid design ensure excellent grinding parameters. The spindle is mounted in a cartridge case that protects the bearings and makes maintenance easy.

The spindle has high running accuracy, its bearing is vibration-free, axial and radial bearings have excellent running accuracy. Bearing life with grease lubrication ensures long lasting performance. Spindle impact is less than 1 micron.





MACHINE'S BASIC CONSTRUCTION

• Spindle motor 7.5kW
• GRinding Stone spindle with precision bearings
• Spindle height is 700mm
• Grinding wheel size (D405 * 50 * D127mm)
• Cross slide way: V profile on both sides
• Longitudinal slide way: V profile on both sides
• Cross-movement - automatic (AC Motor)
• Longitudinal movement - hydraulic piston
• Vertical motion: fast moving AC motor
• Automatic Vertical Infeed
• NC control - with grinding cycles, touch screen, dial-up system
• MPG Handwheel, with 0.01mm-10mm incremental adjustment
• Automatic central lubrication system
• Desktop load kg 1400-2000 (workpiece assembly and workpiece)
• Work piece holders weight 415 kg (1000 * 500mm)
• Workplace lighting



BASE EQUIPMENT

• Grinding wheel (92A 36H 10V / D405x50XD127)
• Grinding wheel extractor
• Balancing axis
• Stone catch shaft
• Stone fastening flange (5 ")
• Stone Sharpener Unit Standard Design (Table Mount)
• Splash - refrigerant - protection elements
• Toolbox with tools
• Primary items
• Handling and maintenance instructions
• Cross ballscrew
• Vertical ballscrew
• Cross-grinding function
• Cross directional stroke adjustment with electric contact sensor
• Automatic infeed function - Y axis NC - 0.001 to 0.03 mm
• Top-mounted stone handler, un. dressing unit with automatic size compensation
• Spindle Motor Invertor
• According to CE
• Workplace lighting - Led lamp
• Cooling water treatment with magnetic separation
• Magnetic table with 500x1500mm transformer and demagnetizing unit
• Coolant system with automatic filter paper step and magnetic separator

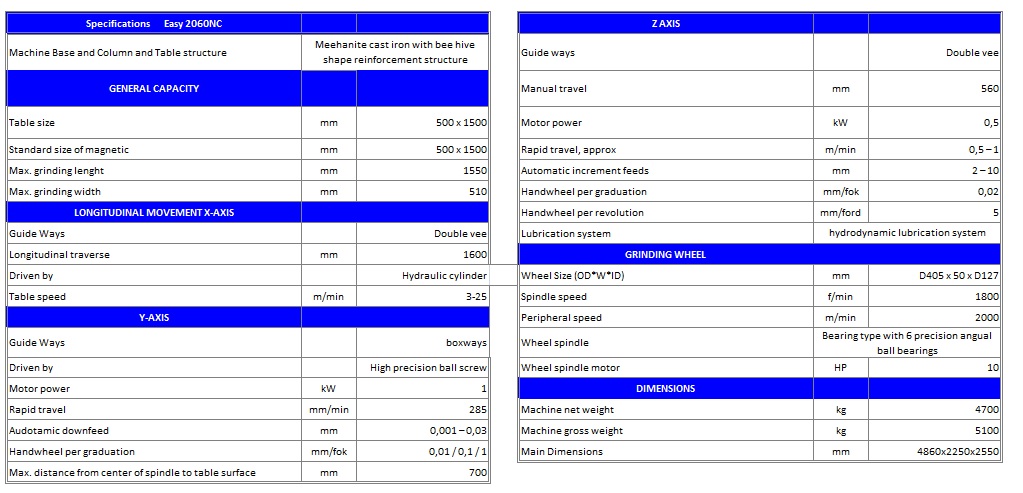

Technical parameteres click here
