HL-300MSY lathe



HL300MSMSY

Machine Structure

The HL-300MSY series all use a single piece casting for the base to enhance rigidity and precision as well as ensuring an excellent surface finish. This casting is stress relived to ensure long term, deformation free performance. The casting is also heavily ribbed to minimize vibration and increase structural strength.





Double Spindle

The newly redesigned HL-300MSY series with double spindles possesses the cutting versatility to complete all of your complex parts machining in a single set up in record timegpgy



90 Degree Structure

The special structural design of the HL-300MSY series uses a rigid 90° angle for the turret carriage so you maintain superb rigidity and stability in machining. Additionally, this allows you to use a simpler controller specification, reducing programming complexity and saving you money at the same time.



Y axis Turret
The HL-300MSY with Y-Axis turret is in the upper position and it can complete machining on parts in the main or sub spindle. It is shared with these 2 spindles. Tools can be placed facing either the main or sub spindle.

Horizontally Assembled Main Structure

The main structure is horizontally assembled on a jig to maintain the highest precision, with all components thoroughly certified before final assembly

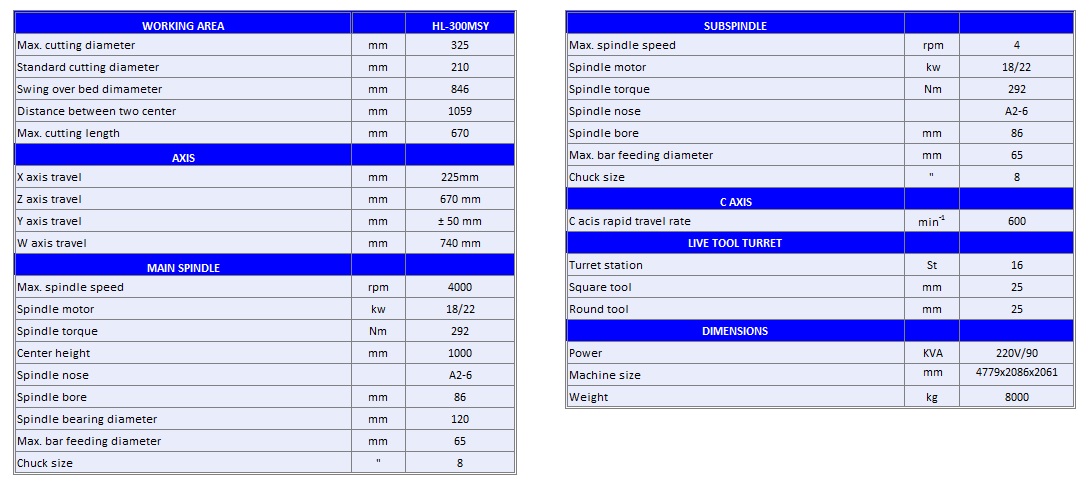

Technical parameters click here.
