HL-400M lathe



HL300MSMSY

Machine Structure

This series is designed for heavy-duty parts of 400mm in diameter and 600mm in length. Equipped with either an 8” or 10” hydraulic chuck with a programmable tailstock for long shaft machining capability.

This machine is offered with either a servo or powered turret for maximum versatility, 12 station tool capacity and a 3-disc clutch gear positioning to maintain high accuracy and loong-life use. Ultra rigid 45 slant bed structure with wide spanning lenear guideways ensures long-term rigidity and machining accuracy during heavy-duty machining.

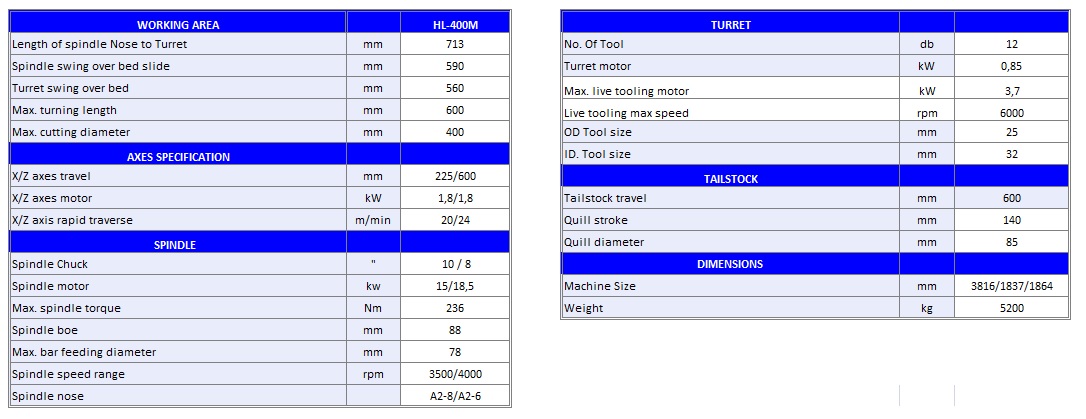

Technical parameters click here.
